LMW Unveils Latest Innovations at ITMA 2023
Lakshmi Machine Works Limited (LMW) introduced the most innovative Card LC636 SX with CDS & Fix-Fil, compact footprint Twin Delivery Auto Leveller Draw Frame LDF3 2S, the longest smart Ring Frame LR 90 series, and the latest fully automated yarn piecing system for Ring spinning machine Ring Frame Auto Piecing (RAP) at ITMA 2023.
The longest smart Ring Frame LR 90 Series, the first of its kind to the market with a host of features that deliver superlative benefits to the end user. The machine comes in two variants, LR90 SX/SXL (without compact) and LRJ 90 SX/SXL (with inbuilt suction compact arrangement).

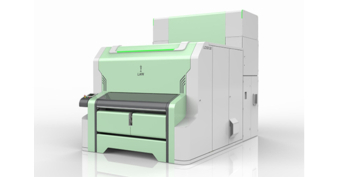

Card LC636 SX
Smart Card LC636 SX with CDS & Fix-Fil, the most innovative card that drives productivity and quality to the highest levels. With optional features of CDS (Card with Drafting System) and Fix-Fil can changer arrangement, this card ensures high efficiency and productivity up to 250 kg/hr with consistent quality.
The 1.5-meter working width and 36 working flats ensure quality deliverable, thanks to the highly impressive active carding and cylinder area. Due to its unique design of various technological elements and energy efficient drives, the smart card delivers higher realization of up to 1% with power savings of up to 15%.
High productivity, optimized space utilization, and reduced manpower requirements
This smart card is equipped with a new patented 120 mm height flats to have stable and constant cylinder to flat setting across the width. The flats to cylinder setting sensing are through optical sensors mounted on four flats such that any time the distance is sensed and known (Optional feature). To improve the user friendliness and maintenance friendliness, FASS – Flats Automatic Setting System is provided as an optional feature wherein it retains the 5 individual place adjustments through motor.
This card is loaded with a host of features that benefit customers and meet the demanding requirements of the market. Overall, experience high productivity, enhanced quality, better realization, lower power consumption, optimized space utilization, and reduced manpower requirements.
Choosing the LC636 SX Card is a significant step towards achieving optimal utilization of resources and increasing productivity.

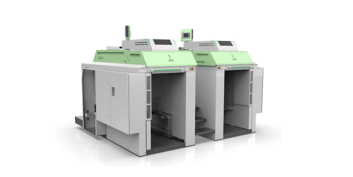

Auto Leveller Draw Frame LDF3 2S
Presented the Twin Delivery Auto Leveller Draw Frame LDF3 2S in succession with the most successful Auto Leveller Draw Frame model LDF3 S. This innovative state-of-the-art machine has the most compact footprint and is designed to deliver consistent quality, with a high degree of auto levelling efficiency, and works up to delivery speed of 1100 m / min.
Some of the key features of LDF3 2S include:
- Independent drive arrangement
- Duo Digital Auto Levelling
- Servo drive for precise operation
- Speed and draft changes through display
- Mechanically well synchronized drive system with timing belt
- SMART Quality set- Online Quality Monitoring
- Efficient TR Strip and SP SMART Auto piecing system
- Centralized roller setting
- Kinetic back up technology
With its superior deliverables the Twin Delivery Auto Leveller Draw frame LDF3 2S is the perfect choice for modern textile mills.

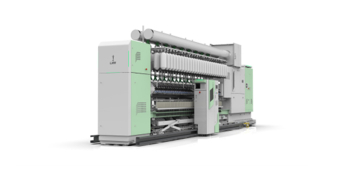

The longest Ring Frame offering in the market with a maximum spindleage of up to 2400: LRJ 90/SX
Ring Frame LRJ 90/SX
The Ring Frame LR 90 Series is the longest Ring Frame offering in the market with a maximum spindleage of up to 2400. With a higher spindle speed of up to 30,000 rpm (mechanical), the machine delivers higher productivity with consistent quality. The technological enhancements and the quality package ensure up to 30% improvement in yarn imperfection and classimat H1 fault and reduction in EBH up to 2-3%.
Power Savings
The energy efficient, low decibel HLED spindles coupled with HK RYC consumes lower power and saves up to 8%. The pneumafil suction and compact suction are so designed that the overall power savings including the spindles is up to 10%.
Space Savings
This Smart Ring Frame is designed with a gauge length of 65 mm and occupies the lowest footprint and saves space of up to 8%.
Automation
The state-of-the-art automation includes the Ring rail drive, new Auto-doffer drive mechanisms and Suction unit with AWES.
RAP – Ring Frame Auto Piecing
Ring Frame Auto Piecing (RAP), the fully automated yarn piecing system for ring spinning machine, receives information on yarn break through YBS (Yarn Break Sensor) and travels to the particular spindle and automatically pieces the yarn instantly as a human does.
Manpower Savings
The biggest challenge faced by the spinning industry is shortage of skilled manpower, especially in Ring spinning. The piecer needs to be trained and skilled to do the piecing with lesser end mending time to avoid production losses. The RAP ensures auto piecing thus reducing the dependency on manpower.
Increased Productivity
RAP consistently works 24 x 7 throughout the year. The RAP unit receives signal from the YBS (Yarn breakage sensor) and travels directly to the respective spinning position and automatically mends the yarn as a human does. RAP captures the broken end from the package in a unique way without lifting the package, then inserts the yarn into the traveler and gets over pieced. The immediate attention to the broken end and the shorter auto piecing cycle time around 35 seconds ensures higher productivity.
Precise Quality
RAP ensures the consistent piecing length in the mended yarn. Auto Piecer also eliminates the contamination on the cop outer surface (through manual handling) which enhances and retains the quality of the yarn.
Flexibility
The unique design of Ring Frame Auto Piecing (RAP) is suitable for both types of spinning technology, Normal Ring Spinning and Compact Spinning. It works ease on all applications.
